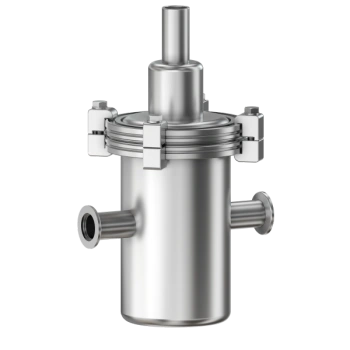

Liquid Nitrogen (LN₂) Trap

Part Number: FTN-40410

Price: $985.00

Quantity:

Features

Liquid Nitrogen Trap
Reduces hydrocarbon backstreaming from oil-sealed pumps
Traps particles and condensable vapors

Create a Custom Trap

Liquid Nitrogen (LN2) Trap, Single Tube, 4" In-line, KF40

Legacy Part No.: FTN-4-1002-NWB

Technical Resources

Specifications

Trap Type: Liquid Nitrogen Trap
Seal Material: FKM
Port Orientation: In-Line
Flange Size / Type: KF40
Body Material: 304 Stainless Steel
Nominal Body OD: 4" (100mm)
Weight: 7 lbs
Vacuum Range: > 1 · 10^-8 mbar to 1 bar
Claw Clamps: Aluminum
Temperature Range: -20 °C to 150 °C
LN₂ Dewar Capacity: 0.75 Liter

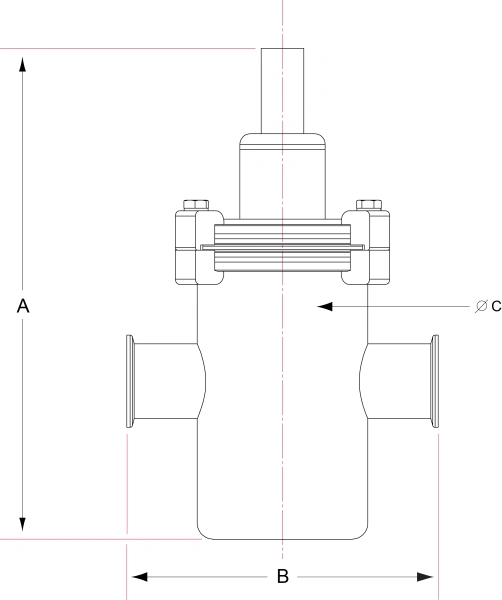

Imperial Units

Dim A: 11.5"
Dim B: 7.3"
Dim C: 4"
Dim D: 3.7"
