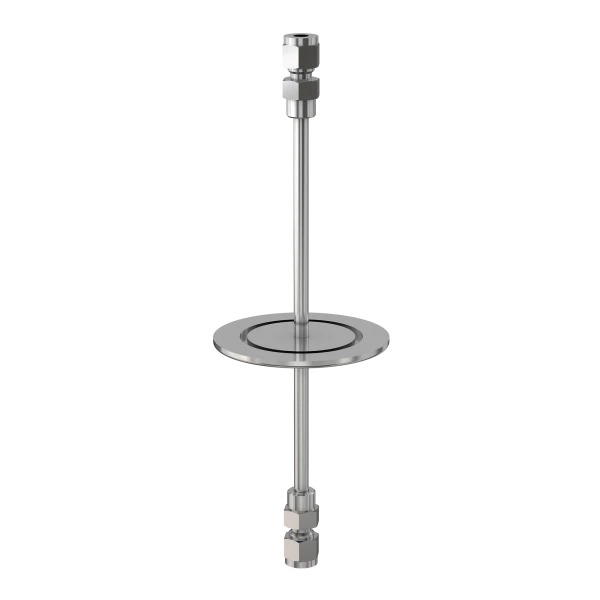

Liquid & Gas Feedthrough

Part Number: LFT-NW-50-1-025-2SW
Price: $324.00
Quantity:

NW-50 Single Liquid Feedthrough, 1/4" Swagelok Fitting
Technical Resources
Specifications
  • Feedthrough Type: Liquid & Gas
  • Flange Size / Type: DN 50 ISO-KF
  • # Feedthroughs: One
  • Feedthrough Tube Termination: 1/4" Swagelok
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Weight: .5 lbs
Single-Liquid-Dia
Imperial Units
Dim A: .01"
Dim B: .01"
Dim E: .250"

Installation Hardware
