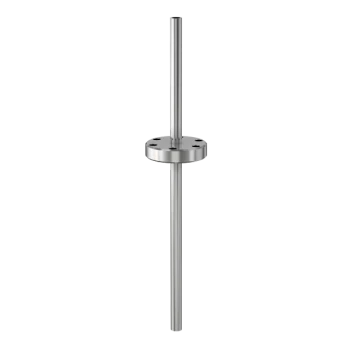

Liquid & Gas Feedthrough

Part Number: LFT-150-1-025
Price: $242.50
Quantity:

2.75" OD CF Single Liquid Feedthrough, 1/4" OD Tube
Technical Resources
Specifications
  • Feedthrough Type: Liquid & Gas
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • # Feedthroughs: One
  • Feedthrough Tube Termination: 1/4" OD Tube
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |-270 °C to 450 °C
  • Weight: .5 lbs

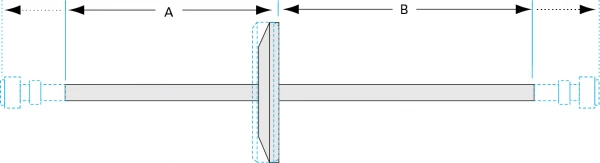

Single-Liquid-Dia
Imperial Units
Dim A: .00"
Dim B: .00"
Dim E: .250"

Installation Hardware
