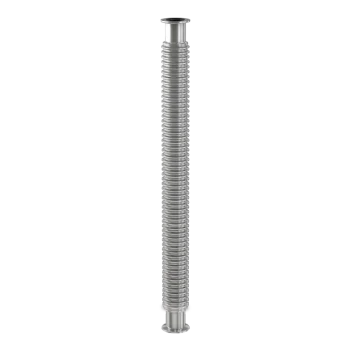

ISO-KF Medium Wall Flexible Hose

Part Number: FH-100-60-2NW

Price: $149.00
Quantity:

NW-25 Medium Wall SS Flexible Hose, 60" Length
Features
  • Dampen out pump vibrations with a flex coupling
  • Easily join two mis-aligned ports using a flex hose
  • Standard lengths and flange combinations offered. Others available.
  • Thin, medium and thick wall hoses offer a range of flexibility and robustness
Specifications
Flange Size: DN 25 ISO-KF
Type: Flexible Bellows Hose
ID: 1"

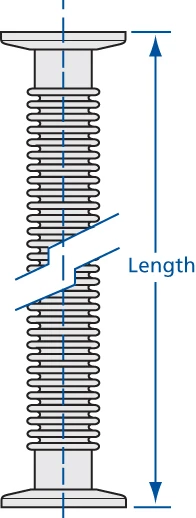

Length: 60"
Wall Thickness: 0.008"
Bend Radius: 1.5"
Hose Material: 321 stainless
Flange & Cuff Material: 304 Stainless
Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
Metal seal: 1 · 10-10 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -270 °C to 150 °C
