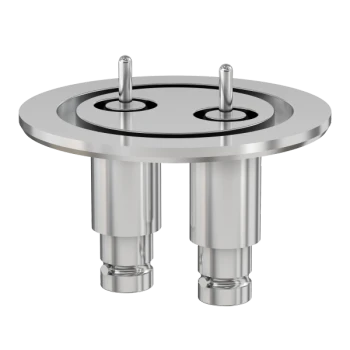

MHV Instrumentation Feedthrough

Part Number: MHV-NW-40-4
Price: $366.00
NW-40 MHV Coaxial Feedthrough, Four Conductors
Technical Resources
  • Feedthrough Type: Instrumentation
  • Flange Size / Type: DN 40 ISO-KF
  • # Feedthroughs: Four
  • Pin Material: Stainless Steel
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Voltage Rating: KV DC
  • Current Rating: A
  • Electrical Connector: NC-VC
  • Weight: .5 lbs

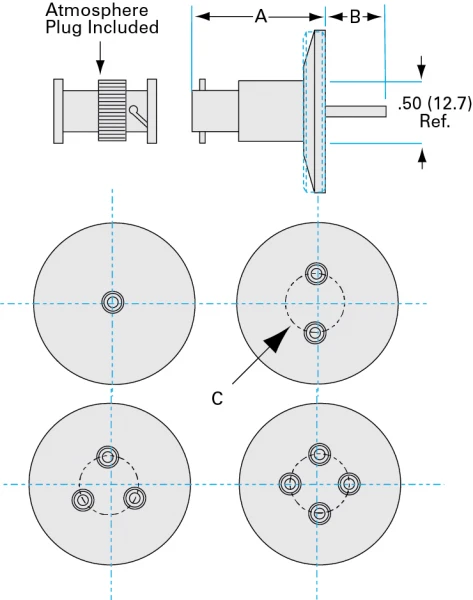

Imperial Units
Dim A: .43"
Dim B: .250"
Dim C: .900"
