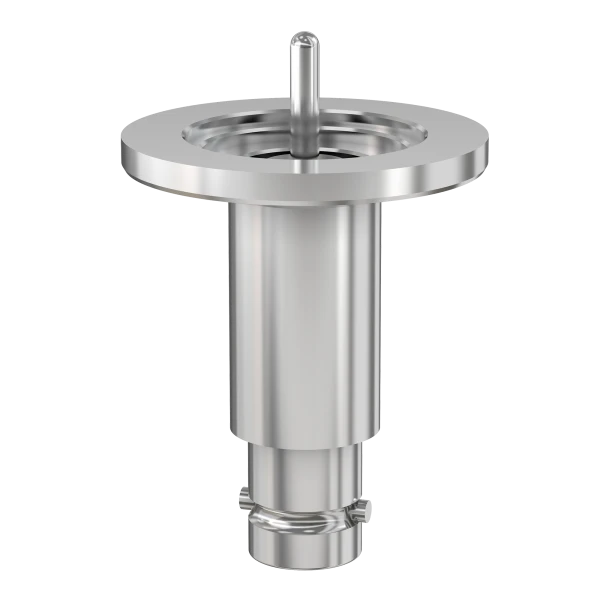

BNC Instrumentation Feedthrough

Part Number: BNC-NW-16-1
Price: $107.00
Quantity:

NW-16 Coaxial Feedthrough, 1 Feedthrough
Technical Resources
Specifications
  • Feedthrough Type: Instrumentation
  • Flange Size / Type: DN 16 ISO-KF
  • # Feedthroughs: One
  • Pin Material: Stainless Steel
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Voltage Rating: 00 V DC
  • Current Rating: A
  • Electrical Connector: NC-VC
  • Weight: .5 lbs
Coaxial-Feedthroughs-Dia
Imperial Units
Dim A: .43"
Dim B: .320"

Installation Hardware
