Click to enlarge
View CAD

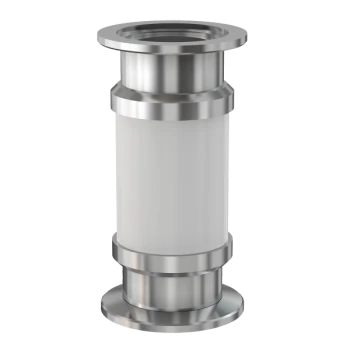

Ceramic Break Insulator

Part Number: HVI-NW-40-15
Price: $420.00
Quantity:

NW-40 High Voltage (15 KV) Insulator
Technical Resources
Specifications
  • Insulator Type: High Voltage
  • Flange Size / Type: DN 40 ISO-KF
  • Sleeve Material: Kovar
  • Insulator Material: Alumina Ceramic
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-8 mbar to 1 bar (high vacuum)
  • Temperature Range: -20 °C to 200 °C
  • Voltage Rating: 30 KV
  • Weight: 1.25 lbs
Imperial Units
Dim A: 4.20"
Dim B: 2.00"
Dim C: 1.37"
Dim D: 2.73"
Dim E: 1.64"
Dim F: 1.25"
