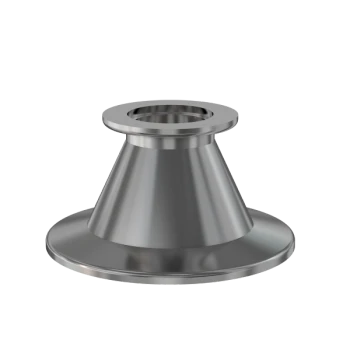

ISO-KF Conical Reducer Nipple

Part Number: 2NRC-NW-50-40-316L
Price: $325.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-50 to NW-40 Conical Reducer Nipple, 316L SS
Technical Resources
Specifications
  • Flange 1: DN 50 ISO-KF
  • Type: Conical Reducer
  • Material: 316L stainless
  • Flange 2: DN 40 ISO-KF
  • Tube OD: 2"
  • Length: 1.57"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Tube OD 2: 1-1/2"
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.41 lbs

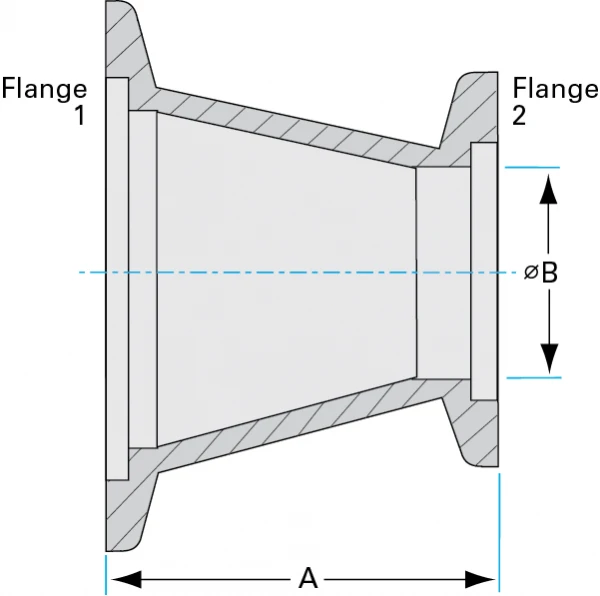

NW-Conical-Reducer-Nipples-Dia
Imperial Units
Dim A: 1.57"

Installation Hardware
