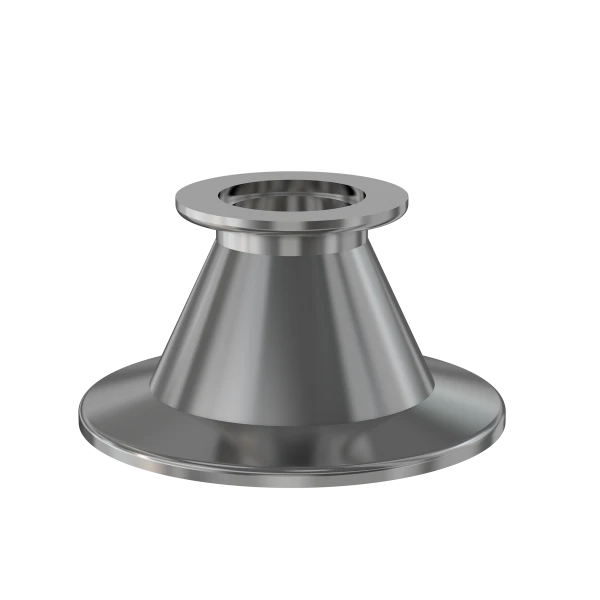

ISO-KF Conical Reducer Nipple
Part Number: 2NRC-NW-40-25-316L
Add to Cart Add to Quote
Features
Contact us at 800-824-4166 if you can't find exactly what you need
ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
Many others available, including a range of 316L material and preps for metric tubing
Most common standard lengths and sizes listed
NW-40 to NW-25 Conical Reducer Nipple, 316L SS
Specifications
Flange 1: DN 40 ISO-KF
Type: Conical Reducer
Material: 316L stainless
Flange 2: DN 25 ISO-KF
Tube OD: 1-1/2"
Length: 1.57"
Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar Metal seal: 1 · 10-10 mbar to 1 bar
Tube OD 2: 1"
Temperature Range: FKM: -20 °C to 180 °C Metal seal: -270 °C to 150 °C
Weight: 0.26 lbs
