Click to enlarge
View CAD

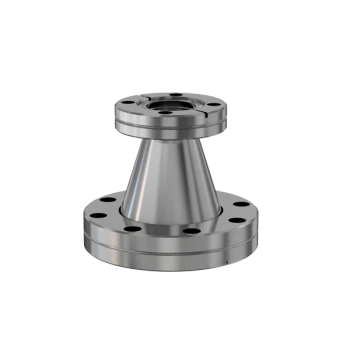

CF Conical Reducer Nipple

Part Number: 2NRC-462-338
Price: $244.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
4.62" OD-to-3.38" OD CF Conical Reducer Nipple
Technical Resources
Specifications
  • Flange 1: DN 75 CF (4.62" OD)
  • Type: Conical Reducer
  • Flange 2: DN 50 CF (3.38" OD)
  • Material: 304 Stainless
  • Tube OD: 3" to 2"
  • Length: 4.13"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-13 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -200 °C to 450 °C
  • Weight: 3.5 lbs

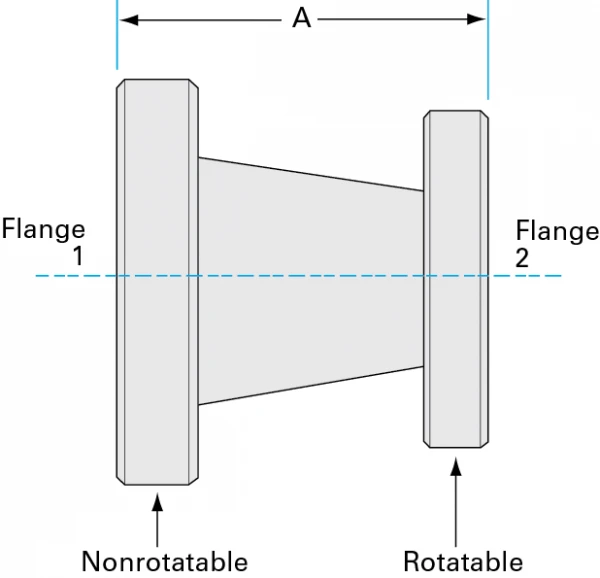

CF-Conical-Reducer-Nipples-Dia
Imperial Units
Dim A: 4.13"
