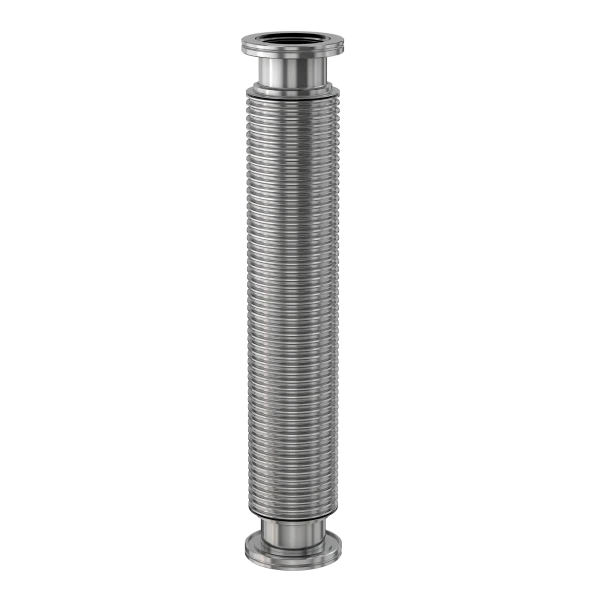

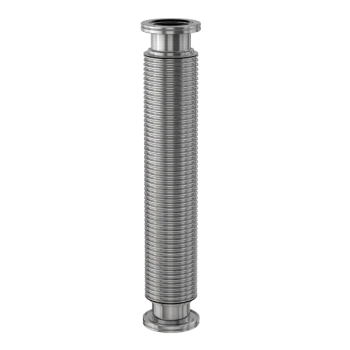

ISO-KF Thin Wall Flexible Hose Part Number: LH-075-10-2NW
Add to Quote
Features
Contact us at 800-824-4166 if you can't find exactly what you need Dampen out pump vibrations with a flex coupling Easily join two mis-aligned ports using a flex hose Standard lengths and flange combinations offered. Others available. Thin, medium and thick wall hoses offer a range of flexibility and robustness
NW-16 Thin Wall SS Flexible Hose, 10" Length
Specifications
Flange Size: DN 16 ISO-KFType: Flexible Bellows HoseID: 3/4"Length: 10"Wall Thickness: 0.006"Hose Material: 321 stainlessFlange & Cuff Material: 304 StainlessVacuum Range: FKM: 1 · 10-8 mbar to 1 bar-10 mbar to 1 barTemperature Range: FKM: -20 °C to 180 °CBend Radius: 3"
Metric Units
Dim A: 254 mmDim B: 76.2 mmDim C: 3/4"Dim D: 25.9 mmDim E: 0.15 mm
