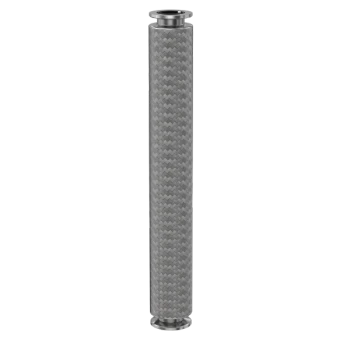

ISO-KF Braided Flexible Hose Part Number: FHB-150-20-2NW
Add to Quote
Features
Contact us at 800-824-4166 if you can't find exactly what you need Dampen out pump vibrations with a flex coupling Easily join two mis-aligned ports using a flex hose Standard lengths and flange combinations offered. Others available. Thin, medium and thick wall hoses offer a range of flexibility and robustness
NW-40 Flexible Stainless Steel Braided Hose, 20" Length
Specifications
Flange Size: DN 40 ISO-KFType: Braided Flexible HoseID: 1-1/2"Length: 20"Wall Thickness: 0.010"Weight: 1.64 lbsHose Material: 321 stainlessFlange & Cuff Material: 304 StainlessVacuum Range: FKM: 1 · 10-8 mbar to 1 bar-10 mbar to 1 barTemperature Range: FKM: -20 °C to 180 °CBend Radius: 3.9"

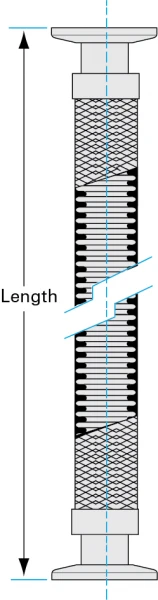

Imperial Units
Dim A: 20"Dim B: 3.9"Dim C: 1-1/2"Dim D: 2-1/4"Dim E: 0.010"
Metric Units
Dim A: 508 mmDim B: 99.1 mmDim C: 1-1/2"Dim D: 2-1/4"Dim E: 0.25 mm
