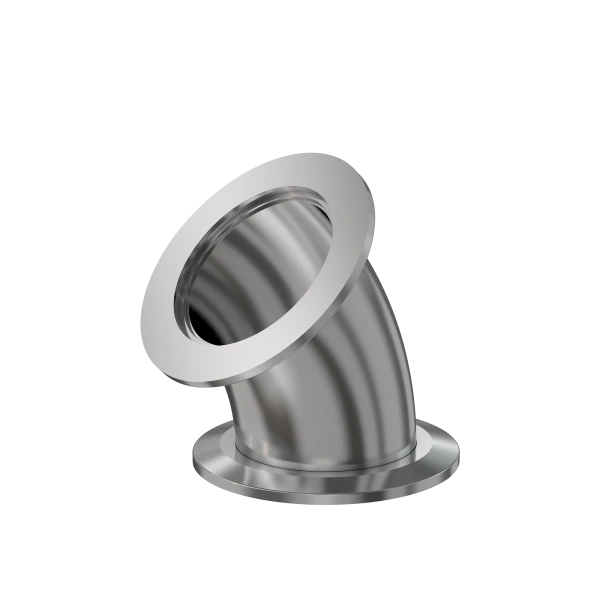

ISO-KF 45 Radius Elbow

Part Number: 2K-NW-40
Price: $101.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-40 45-Degree Radius Elbow
Technical Resources
Specifications
  • Flange Size: DN 40 ISO-KF
  • Elbow Type: Radius 45 Degree
  • Material: 304 Stainless
  • Tube OD: 1-1/2"
  • Port Length: 1.08"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.39 lbs
NW-45-Degree-Radius-Elbows-Dia
Imperial Units
Dim A: 1.08"

Installation Hardware
