Home / Vacuum Flanges & Fittings / Elbows / ISO-KF (NW) Elbow Fittings / ISO-KF 90 Mitered Elbow
Click to enlarge
View CAD

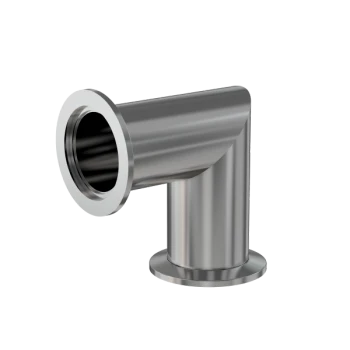

ISO-KF 90 Mitered Elbow

Part Number: 2E-NW-16MB
Price: $65.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-16 90-Degree Mitered Elbow
Technical Resources
Specifications
  • Flange Size: DN 16 ISO-KF
  • Elbow Type: Miter 90 Degree
  • Material: 304 Stainless
  • Tube OD: 3/4"
  • Port Length: 1.15"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.13 lbs

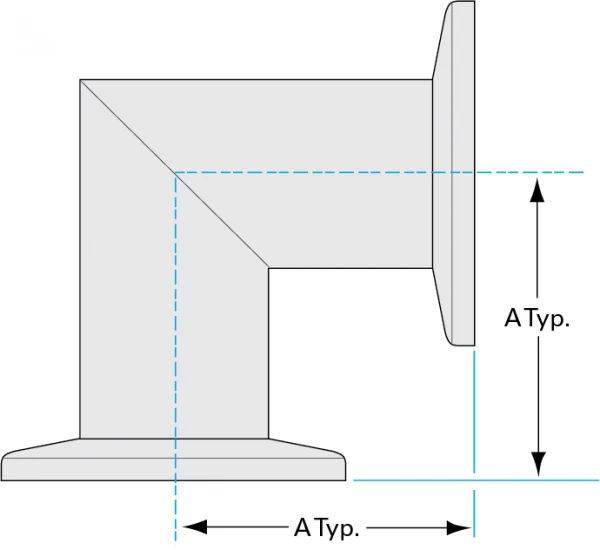

NW-90-Degree-Mitered-Elbows-Dia
Imperial Units
Dim A: 1.15"

Installation Hardware
