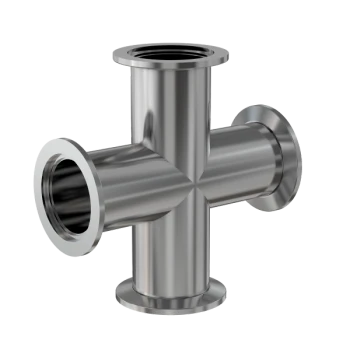

ISO-KF 4-Way Cross

Part Number: 4C-NW-40H

Quantity:


Features
Contact us at 800-824-4166 if you can't find exactly what you need
ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
Many others available, including a range of 316L material and preps for metric tubing
Most common standard lengths and sizes listed
NW-40 4-Way Cross, Extended Ports
Technical Resources
Specifications
Flange Size: DN 40 ISO-KF
Cross Type: 4-Way
Material: 304 Stainless
Tube OD: 1-1/2"
Port Length: 2.56"
Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
Metal seal: 1 · 10-10 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -270 °C to 150 °C
Weight: 1.04 lbs

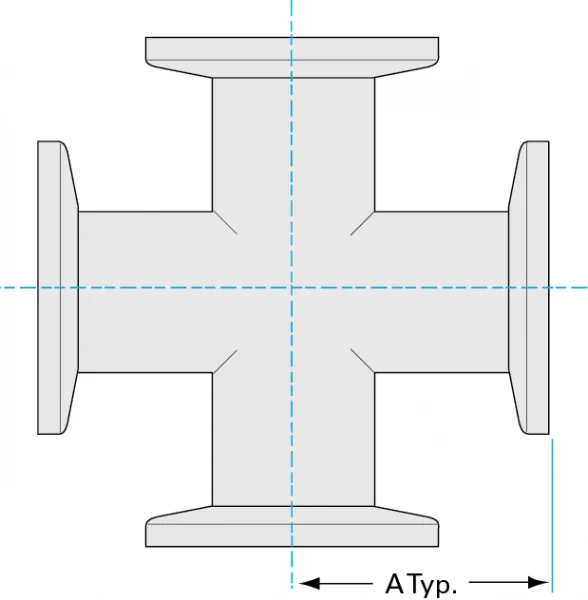

NW-4-Way-Crosses-Dia
Imperial Units
Dim A: 2.56"
