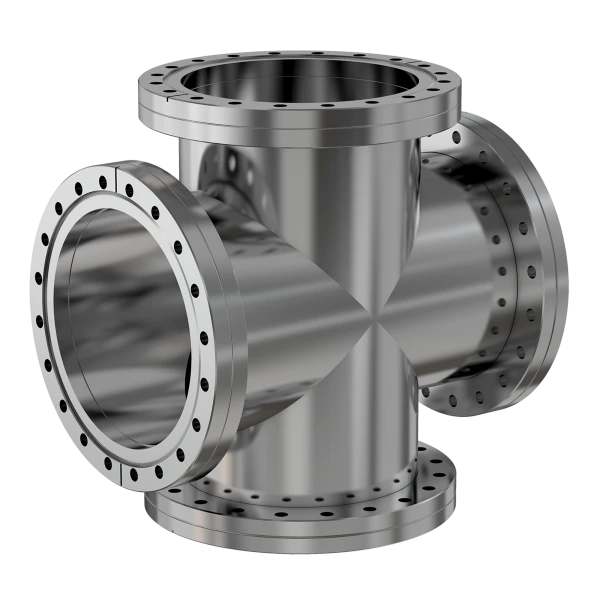

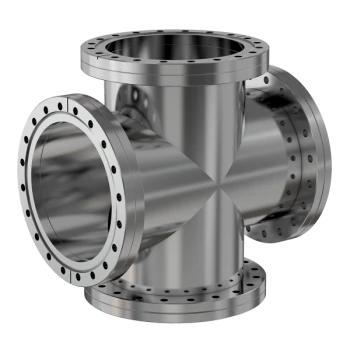

CF 4-Way Cross

Part Number: 4C-175

Quantity:

2.75" OD CF 4-Way Cross
Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Most popular sizes and types listed
  • Rotatable flanges make component alignment easy
  • The CF flange system is ideal for UHV system construction
Specifications
Flange Size: DN 40 CF (2.75" OD)
Cross Type: 4-Way
Material: 304 Stainless
Tube OD: 1-3/4"
Port Length: 2.46"
Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
Metal seal: 1 · 10-13 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -200 °C to 450 °C

Benefits of Choosing Pfeiffer Vacuum+Fab Solutions

  • Dedicated Sales Support — Speak directly with a real person at 800-824-4166.
  • ​​Fast Quote Turnaround
  • 60+ Years of Industry Experience
  • Competitive Pricing and Reliable Service
