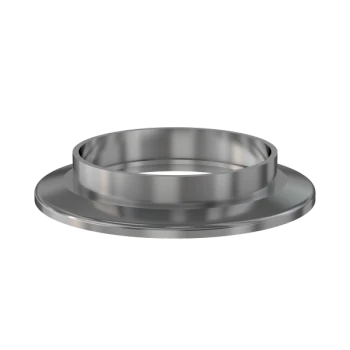

ISO-KF Socket Weld Flange

Part Number: NW-40-SW
Price: $14.40
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
  • Many others available, including a range of 316L material and preps for metric tubing
  • Most common standard lengths and sizes listed
NW-40 Socket Weld Flange
Technical Resources
Specifications
  • Flange Size: DN 40 ISO-KF
  • Type: Socket weld neck
  • Material: 304 Stainless
  • Bore: 1.44"
  • Thickness: 0.500"
  • Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar
    Metal seal: 1 · 10-10 mbar to 1 bar
  • Temperature Range: FKM: -20 °C to 180 °C
    Metal seal: -270 °C to 150 °C
  • Weight: 0.124 lbs

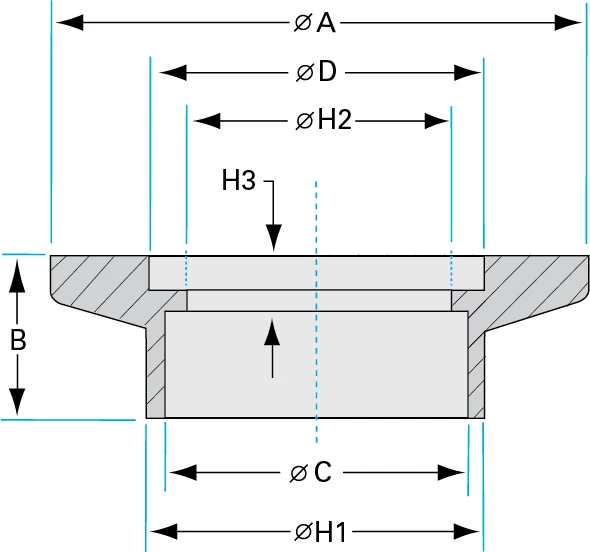

NW-Socket-Weld-Flanges-Dia
Imperial Units
Dim A: 2.16"
Dim B: 0.500"
Dim C: 1.44"
Dim D: 1.51"
Dim E: 0.150"
Dim H-1: 1.64"
