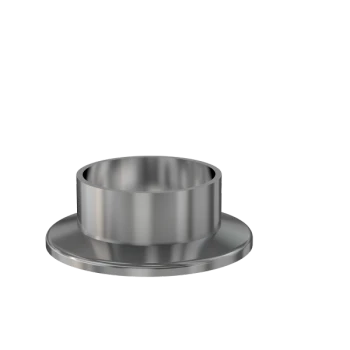

ISO-KF Short Neck Flange
Part Number: NW-16FB
Add to Cart Add to Quote
Features
Contact us at 800-824-4166 if you can't find exactly what you need
ISO-KF flanges are manufactured in accordance with DIN 28403 and ISO 2861
Many others available, including a range of 316L material and preps for metric tubing
Most common standard lengths and sizes listed
NW-16 Short Weld Neck Flange
Specifications
Flange Size: DN 16 ISO-KF
Type: Weld neck, short
Material: 304 Stainless
Bore: 0.625"
Thickness: 0.500"
Vacuum Range: FKM: 1 · 10-8 mbar to 1 bar Metal seal: 1 · 10-10 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C Metal seal: -270 °C to 150 °C
Weight: 0.042 lbs

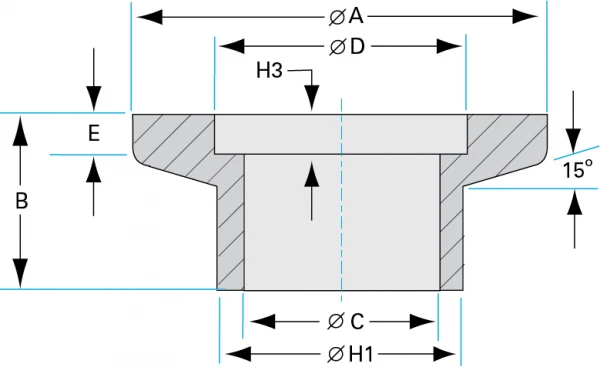

Imperial Units
Dim A: 1.18"Dim B: 0.500"Dim C: 0.625"Dim D: 0.627"Dim H-1: 3/4"Dim H-2: 0.625"
Metric Units
Dim A: 30 mmDim B: 12.7 mmDim C: 15.88 mmDim D: 15.93 mmDim H-1: 3/4"Dim H-2: 15.88 mm
