CF Blank Rotatable Flange

Part Number: 338-000R

Price: $50.00

Quantity:

Features

3.38" OD Blank Rotatable CF Flange Kit

Technical Resources

Specifications

Flange Size: DN 50 CF (3.38" OD)
Type: Weld Flange
Alignment: Rotatable
Feature: Through hole
Material: 304 Stainless
Bore: Blank
Thickness: 0.687"
Bolt Circle: 2.85"
Bolt Hole Dia / Thread: 0.332"
# Bolt Holes: 8
Vacuum Range: FKM: 1 · 10^-8 mbar to 1 bar
Metal seal: 1 · 10^-13 mbar to 1 bar
Temperature Range: FKM: -20 °C to 180 °C
Metal seal: -200 °C to 450 °C
Weight: 1.62 lbs

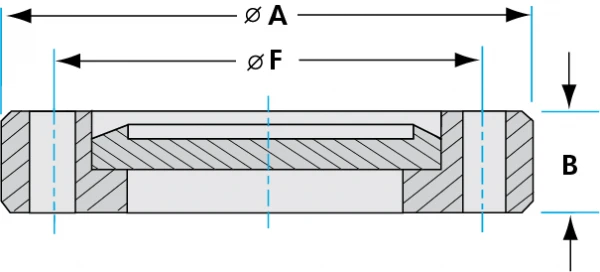

Dim A: 3.36"
Dim B: 0.687"
Dim C: Blank
Dim F: 2.85"
Dim G: 0.332"
