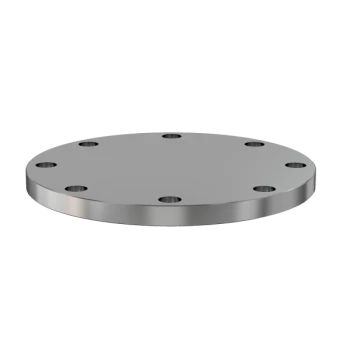

ASA Blank Nonrotatable Flange

Part Number: ASA-9-000N
Price: $187.00
Quantity:


Features
  • All products are available with both genders or a combination
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • One each flat and grooved flange is needed to complete a connection
9" OD Blank Nonrotatable ASA Flange
Technical Resources
Specifications
  • Flange Size: DN 4 (9" OD)
  • Type: Non-rotatable
  • Gender: Flat
  • Material: 304 Stainless
  • Bore: Blank
  • Thickness: 0.500"
  • Bolt Circle: 7.50"
  • Bolt Hole Diameter: 0.750"
  • # Bolt Holes: 8
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 8.7 lbs

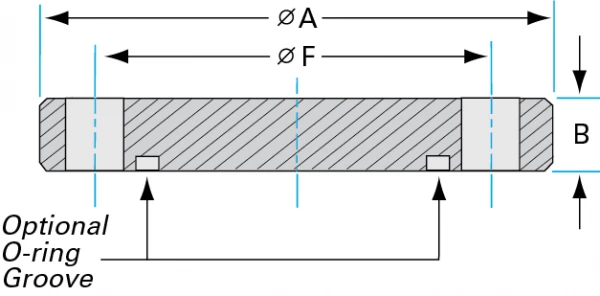

ASA-Flanges-5-to-9-Inches-Dia-1
Imperial Units
Dim A: 9.00"
Dim B: 0.500"
Dim C: Blank
Dim F: 7.50"
Dim G: 0.750"
