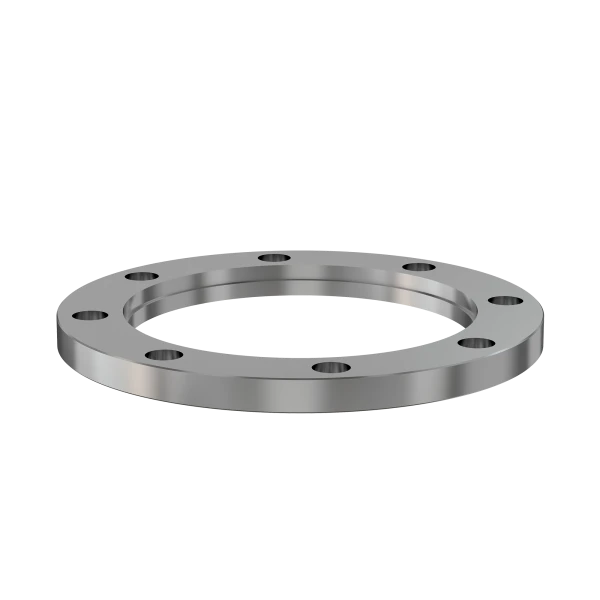

ASA Rotatable Flange

Part Number: ASA-6-300R-G
Price: $289.50
Quantity:


Features
  • All products are available with both genders or a combination
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • One each flat and grooved flange is needed to complete a connection
6" OD X 3" ID Rotatable ASA Flange w/Groove Kit
Technical Resources
Specifications
  • Flange Size: DN 2 (6" OD)
  • Type: Rotatable
  • Gender: with Groove
  • Material: 304 Stainless
  • Bore: 2.94"
  • Thickness: 0.612"
  • Bolt Circle: 4.75"
  • Bolt Hole Diameter: 0.750"
  • # Bolt Holes: 4
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 3.5 lbs
ASA-Flanges-5-to-9-Inch-Dia-4
Imperial Units
Dim A: 6.00"
Dim B: 0.612"
Dim C: 2.94"
Dim D: 3.01"
Dim E: 0.250"
Dim F: 4.75"
Dim G: 0.750"
