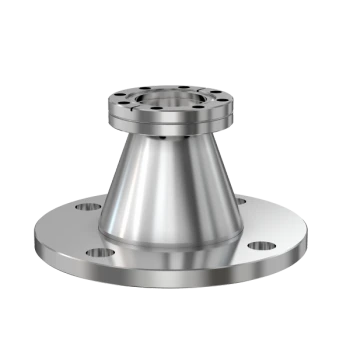

CF to ASA Conical Adapter Nipple

Part Number: ANC-450-ASA-5
Price: $310.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
4.5" OD CF to 5" OD ASA Conical Adapter Nipple
Technical Resources
Specifications
  • Flange 1: DN 63 CF (4.5" OD)
  • Adapter Type: Conical Adapter
  • Flange 2: DN 1.5 (5" OD)
  • Material: 304 Stainless
  • Tube OD: 2"
  • Tube OD 2: 2"
  • Port Length: 3.00"
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 4.9 lbs

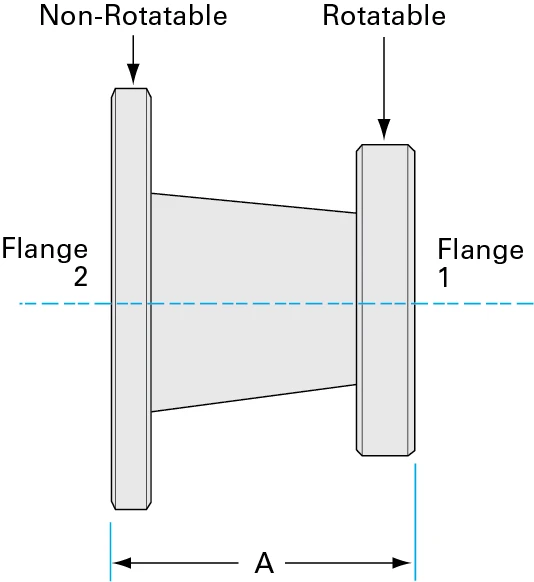

CF-to-ASA-Conical-Adapter-Nipples-Dia
Imperial Units
Dim A: 3.00"
