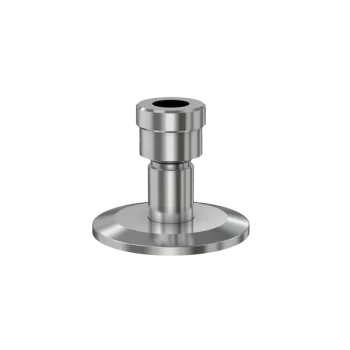

ISO-KF to QD Adapter

Part Number: NW-40-1 QD
Price: $191.00

  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
NW-40 to 1" Quick Disconnect Adapter
Technical Resources
  • Flange Size: DN 40 ISO-KF
  • Adapter Type: Quick Connect Adapter
  • Fitting: 1" QD Fitting
  • Flange Material: 304 Stainless
  • Fitting Material: 316L stainless
  • Length: 1.95"
  • Vacuum Range: 1 · 10-8 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 0.43 lbs

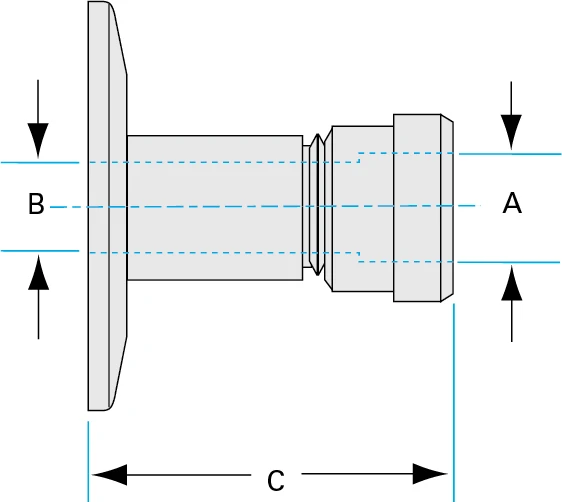

Imperial Units
Dim A: 1.95"
Dim C: 0.875"
Dim H-1: 1"
