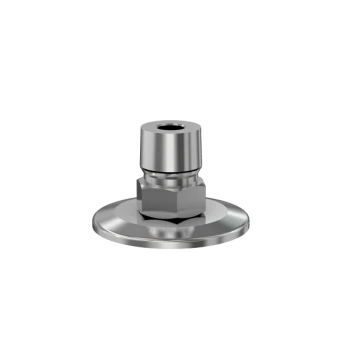

ISO-KF to Pipe Adapter

Part Number: NW-40-1-MPT
Price: $118.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Enables easy joining of two different flanges or fittings
  • Most popular types & combinations listed
NW-40 to 1" Male Pipe Adapter
Technical Resources
Specifications
  • Flange Size: DN 40 ISO-KF
  • Adapter Type: Pipe Thread Adapter
  • Fitting: 1" Male NPT
  • Flange Material: 304 Stainless
  • Fitting Material: 316L stainless
  • Length: 1.64"
  • Vacuum Range: 1 · 10-6 mbar to 1 bar
  • Temperature Range: -20 °C to 150 °C
  • Weight: 0.46 lbs

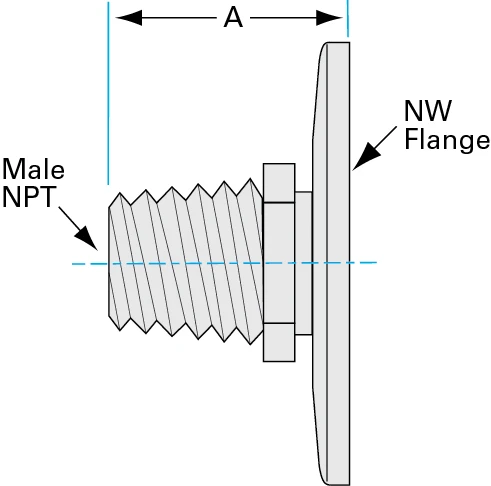

NW-Male-Pipe-Adapters-Dia
Imperial Units
Dim A: 1.64"
