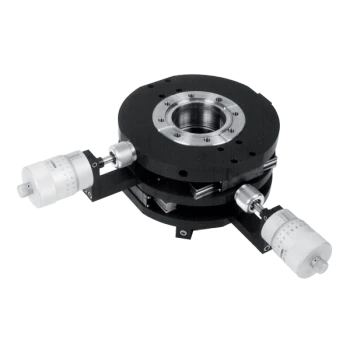

X & Y-axis Motion Stage

Part Number: PMXY-450-250-2
Quantity:

4.5" OD CF XY Stage with 2.5" ID Bellows, 2" Stroke
Technical Resources
Specifications
  • Manipulator Type: XY-Stage
  • Flange Size / Type: DN 63 CF (4.5" OD)
  • Nominal ID: 2-1/2"
  • Orientation: Any (10 lbs max payload if horizontal)
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: 20 °C to 150 °C
  • Flange Material: 304 Stainless
  • Adjustment Range: ±1" XY
  • Weight: 30 lbs
XY-Stages-with-Bellows-Dia
Imperial Units
Dim A: 9.25"
Dim B: 7.75"
Dim C: 7.75"
Dim D: 5.40"
Dim E: 9.25"
