Z-axis Translator

Part Number: MZ-600-300-4

Quantity:

6" OD CF Z-Translator, 3" ID, 4" Stroke

Technical Resources

Specifications

Manipulator Type: Z-Translator
Flange Size / Type: DN 100 CF (6" OD)
Z-Stroke: 4"
Nominal ID: 3"
Orientation: Any
Vacuum Range: 1 · 10^-10 mbar to 1 bar (UHV)
Temperature Range: 20 °C to 150 °C
Flange Material: 304 Stainless
Weight: 30 lbs

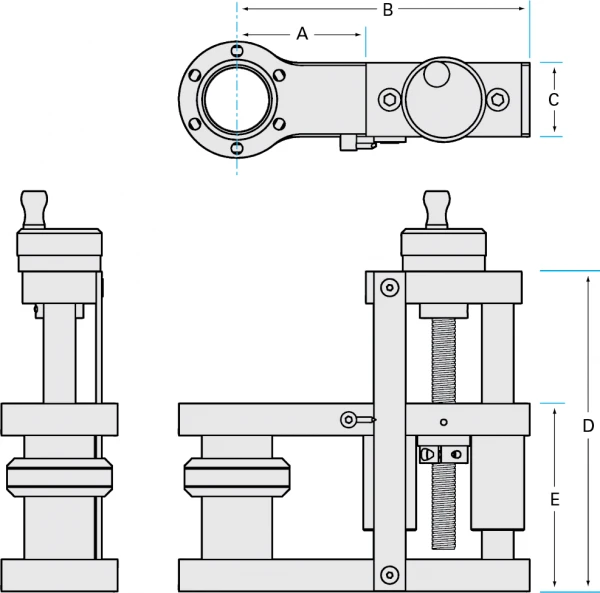

Z-Translators-Dia-B

Dim A: 12.1"
Dim C: 6.43"

Installation Hardware

CF Gasket [G-600-SP]
