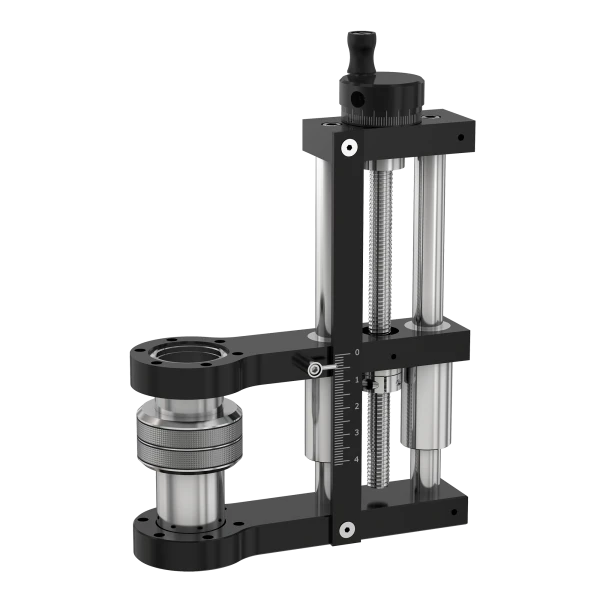

Z-axis Translator

Part Number: MZ-450-188-6

Quantity:

4.5" OD CF Z-Translator, 1.88" ID, 6" Stroke

Technical Resources

Specifications

Manipulator Type: Z-Translator
Flange Size / Type: DN 63 CF (4.5" OD)
Z-Stroke: 6"
Nominal ID: 1-7/8"
Orientation: Any
Vacuum Range: 1 · 10^-10 mbar to 1 bar (UHV)
Temperature Range: 20 °C to 150 °C
Flange Material: 304 Stainless
Weight: 25 lbs

Z-Translators-Dia-A

Dim A: 3.25"
Dim B: 6.94"
Dim C: 1.75"

Installation Hardware
