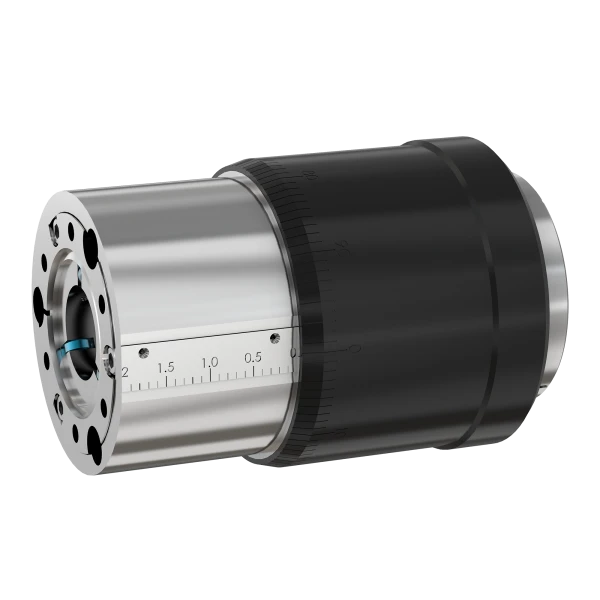

Z-axis Motion Thimble

Part Number: LMT-133
Quantity:

1.33" OD CF Linear Motion Thimble
Technical Resources
Specifications
  • Manipulator Type: Linear Motion Thimble
  • Flange Size / Type: DN 16 CF (1.33" OD)
  • Adjustment Range: 1"
  • Nominal ID: 1/2"
  • Orientation: Any
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: -20 °C to 350 °C
  • Flange Material: 304 Stainless
  • Weight: 1 lbs

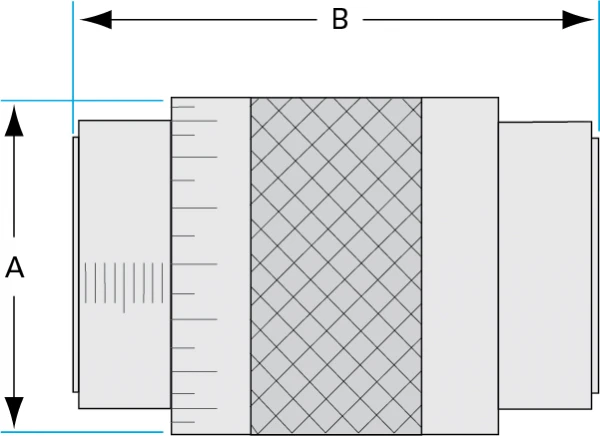

Linear-Motion-Thimble-Dia
Imperial Units
Dim A: 1.75"
Dim B: 1.80"
Dim C: 2.80"

Installation Hardware
