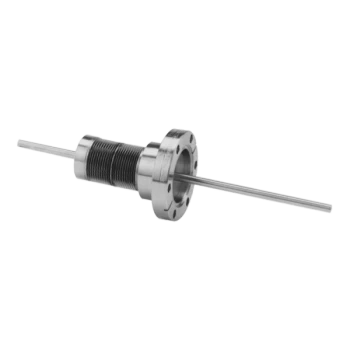

Wobble Stick

Part Number: WBL-275
Quantity:

2.75" OD CF Wobble Stick, 1/4" OD shaft, 2 1/4" Stroke
Technical Resources
Specifications
  • Wobble Stick Type: Tilt & Linear
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • Linear Stroke: 2-1/4"
  • Feedthrough Shaft: 1/4" OD
  • Orientation: Any
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: 20 °C to 450 °C
  • Flange Material: 304 Stainless
  • Angular Motion: ±30° Tilt
  • Weight: 2 lbs

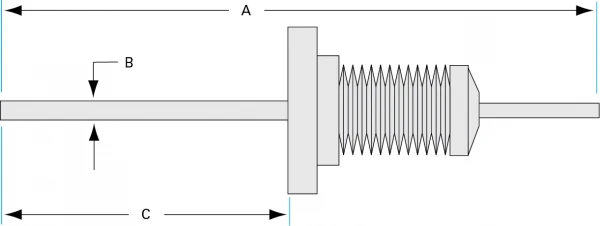

Wobble-Sticks-Dia
Imperial Units
Dim A: 10.0"
Dim B: 0.250"
Dim C: 3.75"
Dim D: 6.00"
