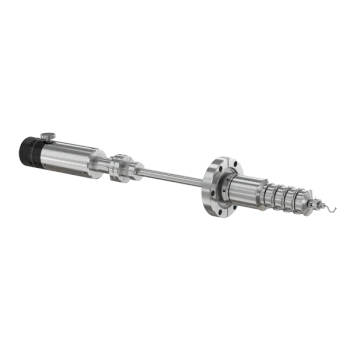

Wobble Stick w/Rotary Motion

Part Number: RWS-275-8

Quantity:

2.75" OD CF Rotary Wobble Stick, 8" Stroke

Technical Resources

Specifications

Wobble Stick Type: Tilt, Linear & Rotation
Flange Size / Type: DN 40 CF (2.75" OD)
Linear Stroke: 8"
Shaft Termination: Sample Hook
Orientation: Any
Vacuum Range: 1 · 10^-10 mbar to 1 bar (UHV)
Temperature Range: 20 °C to 200 °C
Flange Material: 304 Stainless
Angular Motion: ±22° Tilt
Weight: 6 lbs

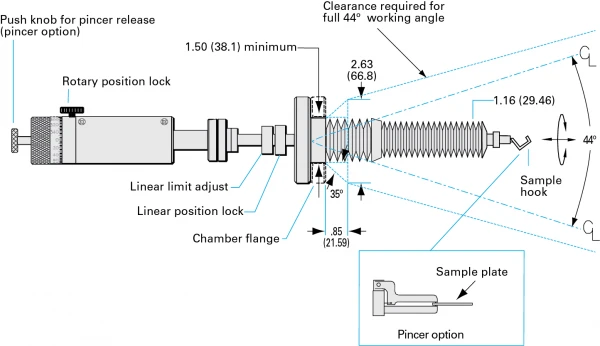

Rotary-Wobble-Sticks-Dia

Installation Hardware

CF Gasket [G-275-SP]
