Home / Vacuum Viewports, Shutters & Doors / Viewport Shutters / Viewport Shutter
Click to enlarge
View CAD

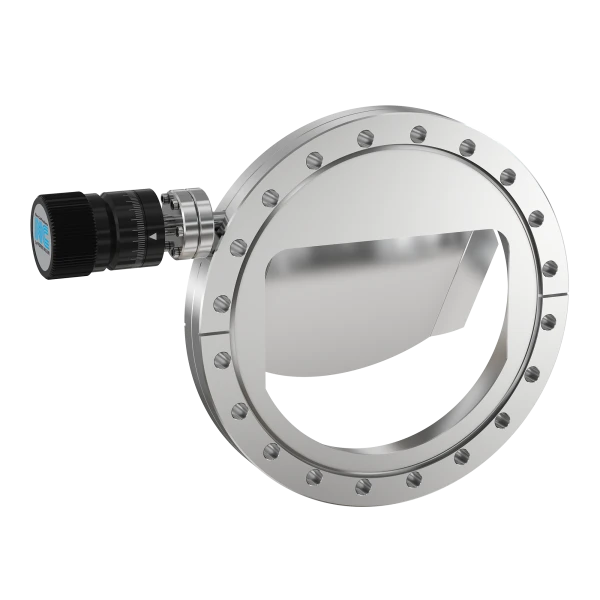

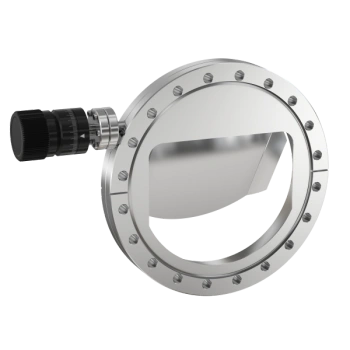

Viewport Shutter

Part Number: ZVS-600
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free
8" OD CF Viewport Shutter, 6" Tube
Technical Resources
Specifications
  • Viewport Shutter Type: Complete Shield
  • Flange Size / Type: DN 150 CF (8" OD)
  • Flange & Shutter Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |-20 °C to 150 °C
  • Weight: 0 lbs
Viewport-Shutters-Dia
Imperial Units
Dim A: .00"
Dim B: .06"
Dim C: .75"
Dim D: .90"
Dim E: .49"
Dim F: .500"

Installation Hardware
