ISO-K Zero Length Viewport ZV-ISO-63-OF

Part Number: ZV-ISO-63-OF

Price: $278.00
Quantity:


Features
Contact us at 800-824-4166 if you can't find exactly what you need
Specialized materials including sapphire also available
Standard windows made with borosilicate glass or quartz
Use our Add-a-Doors to create your own system load lock
Viewport shutters keep the glass contamination free
ISO-63 Borosilicate Glass Viewport
Technical Resources
Specifications
Viewport Type: Welded Zero Length Viewport
Flange Size / Type: DN 63 ISO-K
Viewport Material: Borosilicate Glass
Flange Material: Stainless Steel
Vacuum Range: 1 · 10-9 mbar to 1 bar (high vacuum)
Temperature Range: -20 °C to 200 °C
Weight: 3.5 lbs

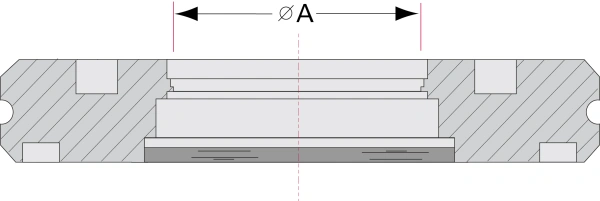

ISO-K Zero Length Viewport
Imperial Units
Dim A: 1.49"
