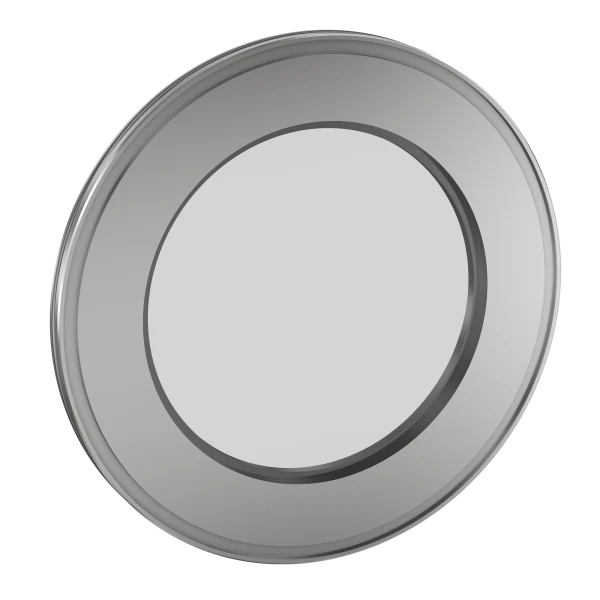

ISO-K Zero Length Viewport

Part Number: ZV-ISO-100-OF
Price: $459.00

  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free
ISO-100 Borosilicate Glass Viewport
Technical Resources
  • Viewport Type: Welded Zero Length Viewport
  • Flange Size / Type: DN 100 ISO-K
  • Viewport Material: Borosilicate Glass
  • Flange Material: Stainless Steel
  • Vacuum Range: 1 · 10-9 mbar to 1 bar (high vacuum)
  • Temperature Range: -20 °C to 200 °C
  • Weight: 2.9 lbs
Imperial Units
Dim A: 2.66"
