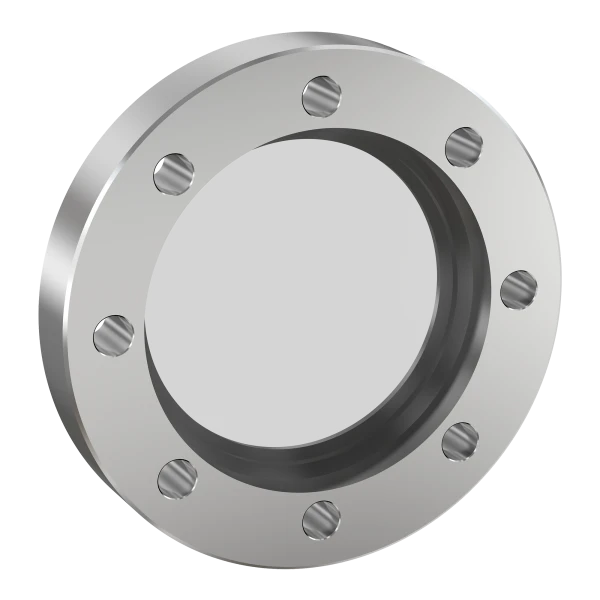

CF Zero Length Viewport
Part Number: ZV-400
Add to Cart Add to Quote
Features
Contact us at 800-824-4166 if you can't find exactly what you need
Specialized materials including sapphire also available
Standard windows made with borosilicate glass or quartz
Use our Add-a-Doors to create your own system load lock
Viewport shutters keep the glass contamination free
6" OD CF Zero Length Viewport
Specifications
Viewport Type: Welded Zero Length Viewport
Flange Size / Type: DN 100 CF (6" OD)
Viewport Material: 7056 glass (Alkali Borosilicate)
Flange Material: 304 Stainless
Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
Temperature Range: |-20 °C to 200 °C
Weight: lbs
