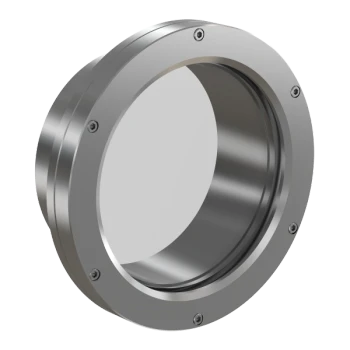

Viewport Weld Stubs

Part Number: VP-250
Price: $582.50
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free

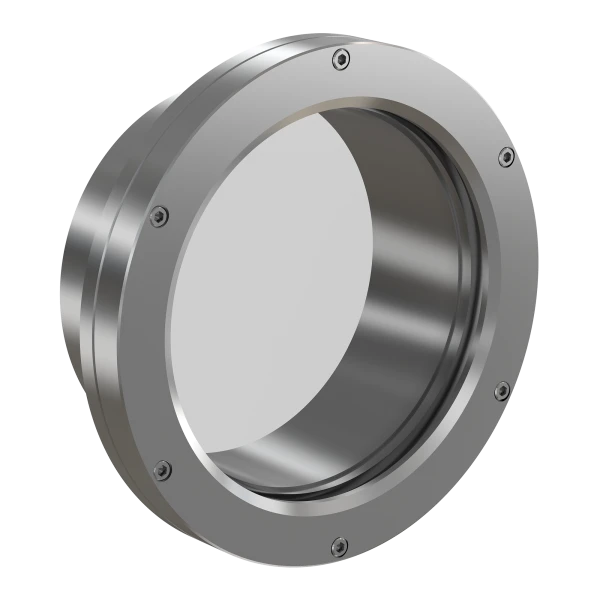

2.5" Viewport Weld Stub, Borosilicate Glass
Specifications
  • Viewport Type: Viewport Weld Stub
  • Flange Size / Type: DN 63 Tube
  • Viewport Material: Borosilicate Glass
  • Flange Material: Stainless Steel
  • Vacuum Range: 1 · 10-9 mbar to 1 bar (high vacuum)
  • Temperature Range: -20 °C to 200 °C
  • Weight: 2.6 lbs

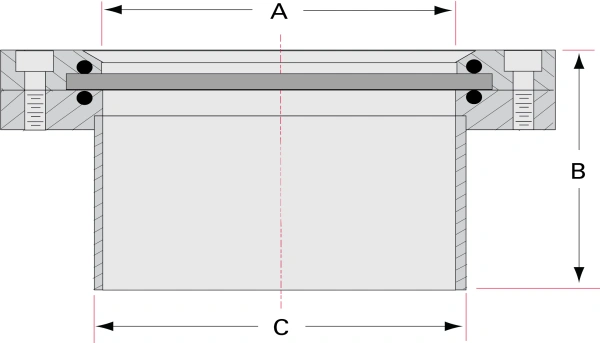

Viewport Weld Subs _ 2024
Imperial Units
Dim A: 2.37"
Dim B: 2.88"
Dim C: 2.50"
