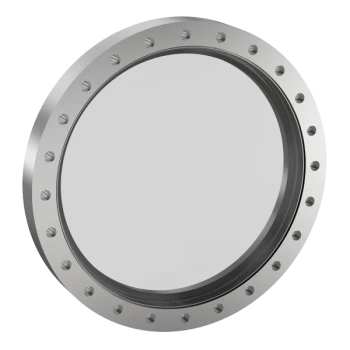

CF Zero Length Viewport

Part Number: ZVQ-800
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free
10" OD CF Zero Length Fused Silica Viewport
Technical Resources
Specifications
  • Viewport Type: Welded Zero Length Viewport
  • Flange Size / Type: DN 200 CF (10" OD)
  • Viewport Material: Fused silica (Quartz)
  • Flange Material: Stainless Steel
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: -20 °C to 200 °C
  • Weight: 12.5 lbs
ISO-and-CF-Zero-Length-Viewports-Dia-A
Imperial Units
Dim A: 7.78"

Installation Hardware
