CF Zero Length Viewport

Part Number: ZVQ-600
List Price: $3,640.00
List Price: $3,640.00
Price: $3,640.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free

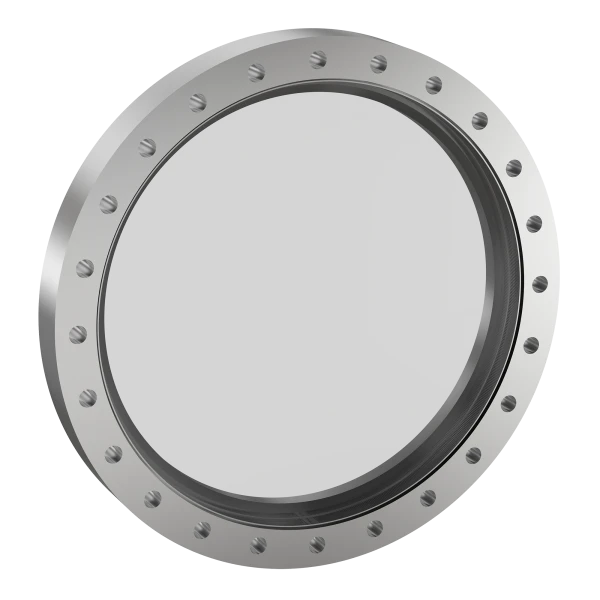

8" OD CF Zero Length Fused Silica Viewport
Technical Resources
Specifications
  • Viewport Type: Welded Zero Length Viewport
  • Flange Size / Type: DN 160 CF (8" OD)
  • Viewport Material: Fused silica (Quartz)
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |-20 °C to 400 °C
  • Weight: lbs
ISO-and-CF-Zero-Length-Viewports-Dia-A
Imperial Units
Dim A: .37"

Installation Hardware
