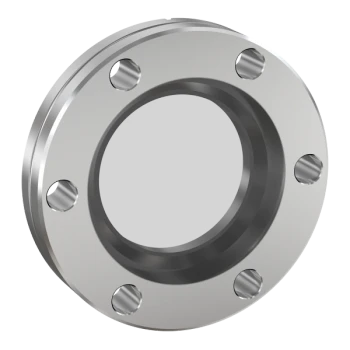

CF Zero Length Viewport ZVQ-500

Part Number: ZVQ-500

Quantity:


Features
Contact us at 800-824-4166 if you can't find exactly what you need
Specialized materials including sapphire also available
Standard windows made with borosilicate glass or quartz
Use our Add-a-Doors to create your own system load lock
Viewport shutters keep the glass contamination free
6.75" OD CF Zero Length Fused Silica Viewport
Technical Resources
Specifications
Viewport Type: Welded Zero Length Viewport
Flange Size / Type: DN 125 CF (6.75" OD)
Viewport Material: Fused silica (Quartz)
Flange Material: Stainless Steel
Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
Temperature Range: -20 °C to 200 °C
Weight: 4.1 lbs

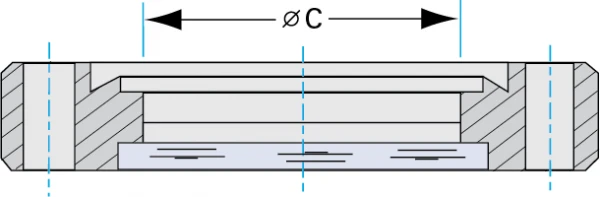

ISO-and-CF-Zero-Length-Viewports-Dia-A
Imperial Units
Dim A: 3.88"
