ISO-KF Zero Length Viewports

Part Number: ZV-NW-50A
Price: $269.00
Quantity:


Features
  • Contact us at 800-824-4166 if you can't find exactly what you need
  • Specialized materials including sapphire also available
  • Standard windows made with borosilicate glass or quartz
  • Use our Add-a-Doors to create your own system load lock
  • Viewport shutters keep the glass contamination free

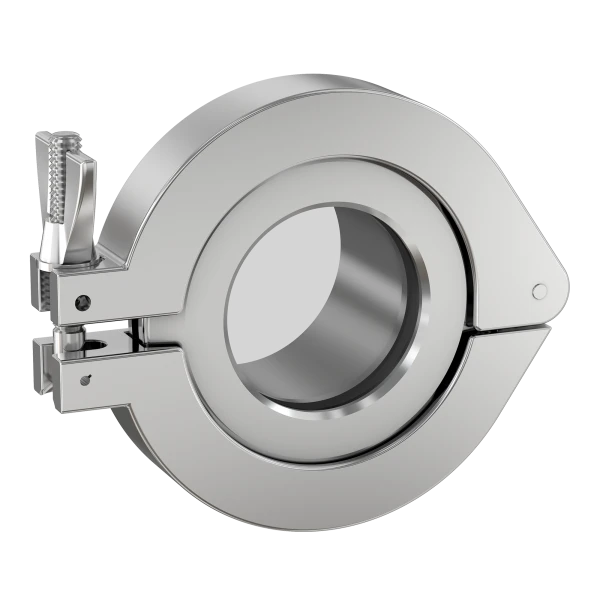

NW-50 Zero Length Fused Quartz Viewport Kit, Includes clamp and NW-nipple
Technical Resources
Specifications
  • Viewport Type: Clamped Zero Length Viewport Assembly
  • Flange Size / Type: DN 50 ISO-KF
  • Viewport Material: Fused silica (Quartz)
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-9 mbar to 1 bar (high vacuum)
  • Temperature Range: |-20 °C to 200 °C
  • Weight: lbs

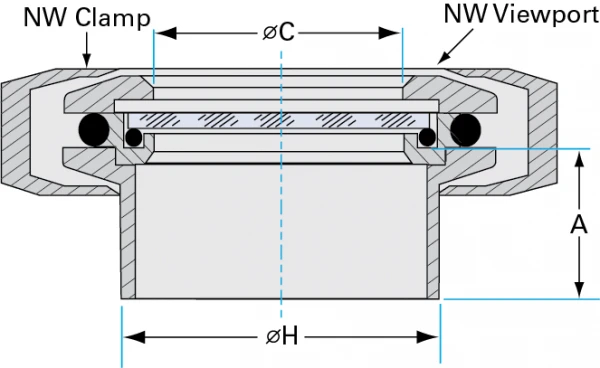

NW-Zero-Length-Viewports-Dia-B
Imperial Units
Dim A: .63"

Installation Hardware
