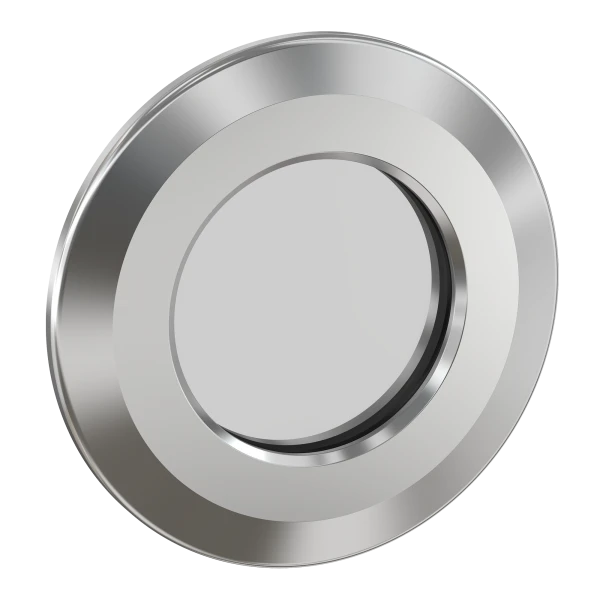

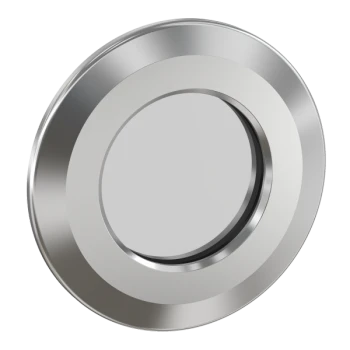

ISO-KF Zero Length Viewports

Part Number: ZV-NW-50

Price: $235.00

Quantity:

Features

Standard windows made with borosilicate glass or quartz
Specialized materials including sapphire also available
Viewport shutters keep the glass contamination free
Use our Add-a-Doors to create your own system load lock
Contact us at 800-824-4166 if you can't find exactly what you need

NW-50 Zero Length Fused Quartz Viewport Kit

Technical Resources

Product Spec Sheet

Specifications

Viewport Type: Clamped Zero Length Viewport Assembly
Flange Size / Type: DN 50 ISO-KF
Viewport Material: Fused silica (Quartz)
Flange Material: 304 Stainless
Vacuum Range: 1 · 10^-9 mbar to 1 bar (high vacuum)
Temperature Range: -20 °C to 200 °C
Weight: 8 lbs

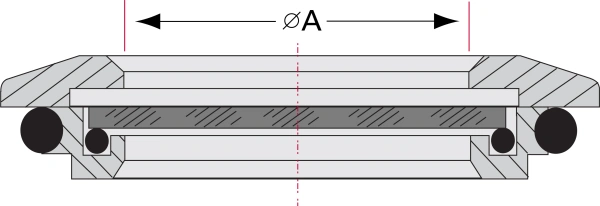

NW-Zero-Length-Viewports-Dia-B

Dim A: 1.63"

Installation Hardware

ISO-KF Centering Ring w/ O-Ring [NW-50-CR-SV]
