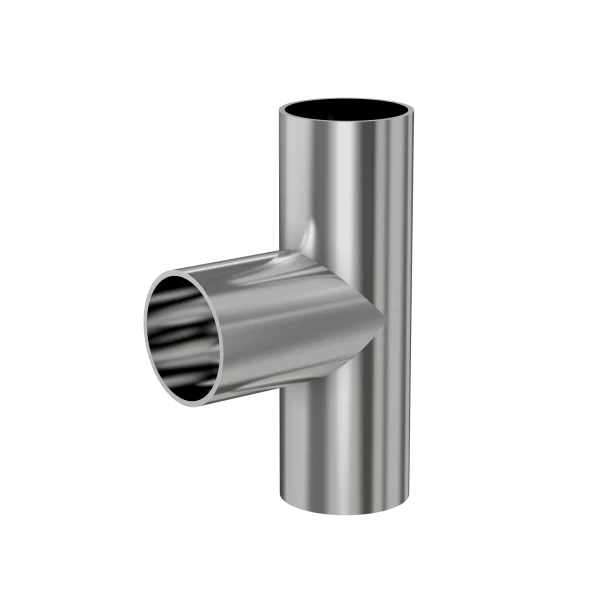

Weld Tee

Part Number: G-7W-075
Price: $24.50
Quantity:


Features
  • Contact us at 800-824-4166 to find out about Nor-Cal's custom weldment offerings
  • Fittings with extended tangents ideal for orbital welders
  • Use wled fittings and tubing to create unique pump line geometries
0.75" OD Tee, Tumble Finish
Technical Resources
Specifications
  • Tube OD: 3/4"
  • Tee Type: Standard
  • Material: 304 Stainless
  • Port Length: 1.00"
  • Wall Thickness: 0.035"
  • Finish: Tumble
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 0.055 lbs
Tees-Dia
Imperial Units
Dim A: 1.00"
Dim C: 0.035"
