Weld Conical Reducer

Part Number: B-31W-300-200-316L
Price: $128.00
Quantity:


Features
  • Contact us at 800-824-4166 to find out about Nor-Cal's custom weldment offerings
  • Fittings with extended tangents ideal for orbital welders
  • Use wled fittings and tubing to create unique pump line geometries

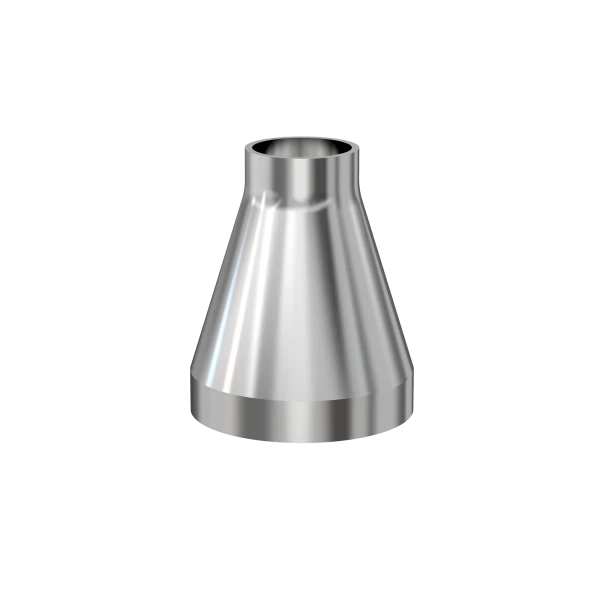

3" OD to 2" OD Conical Reducer, Tumble Finish, 316L SS
Technical Resources
Specifications
  • Tube OD 1: 3"
  • Reducer Type: Conical
  • Tube OD 2: 2"
  • Material: 316L stainless
  • Length: 3.62"
  • Wall Thickness: 0.065"
  • Finish: Tumble
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 0.52 lbs
Conical-Reducers-Dia
Imperial Units
Dim A: 3.62"
Dim C: 0.065"
