Weld End Cap

Part Number: G-2W-800
Price: $62.00
Quantity:


Features
  • Contact us at 800-824-4166 to find out about Nor-Cal's custom weldment offerings
  • Fittings with extended tangents ideal for orbital welders
  • Use wled fittings and tubing to create unique pump line geometries

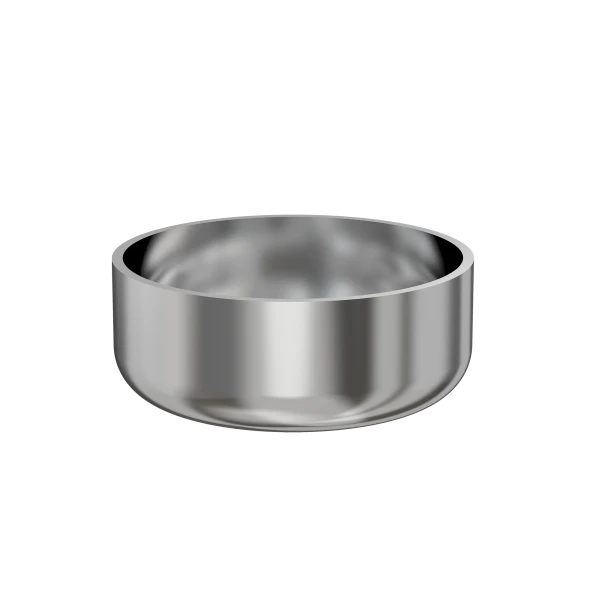

8" OD End Cap, Tumble Finish
Technical Resources
Specifications
  • Tube OD: 8"
  • Type: End Cap
  • Material: 304 Stainless
  • Length: 0.830"
  • Wall Thickness: 0.074"
  • Finish: Tumble
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 4.2 lbs
Imperial Units
Dim A: 0.830"
Dim C: 0.074"
