Weld 45 Radius Elbow

Part Number: G-2WK-200
Price: $20.75
Quantity:


Features
  • Contact us at 800-824-4166 to find out about Nor-Cal's custom weldment offerings
  • Fittings with extended tangents ideal for orbital welders
  • Use wled fittings and tubing to create unique pump line geometries
2" OD 45 Degree Radius Elbow, Tumble Finish
Technical Resources
Specifications
  • Tube OD: 2"
  • Elbow Type: Radius 45 Degree
  • Material: 304 Stainless
  • Port Length: 1.24"
  • Wall Thickness: 0.065"
  • Finish: Tumble
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 0.27 lbs

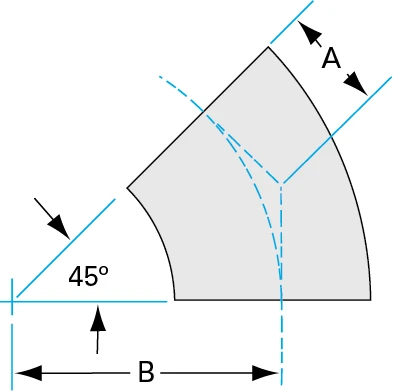

45-Degree-Radius-Elbow-without-Tangent-Dia
Imperial Units
Dim A: 1.24"
Dim B: 3.00"
Dim C: 0.065"
