Weld 90 Degree Radius Elbow

Part Number: G-2WC-600-B
Price: $206.50
Quantity:


Features
  • Contact us at 800-824-4166 to find out about Nor-Cal's custom weldment offerings
  • Fittings with extended tangents ideal for orbital welders
  • Use wled fittings and tubing to create unique pump line geometries

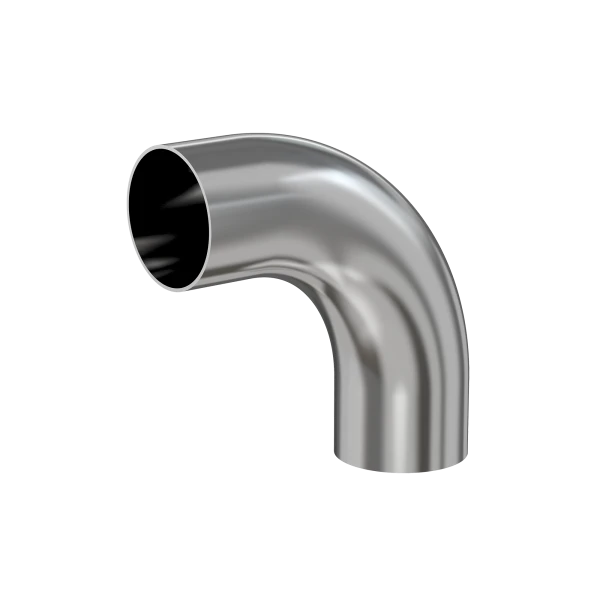

6" OD 90 Degree Radius Elbow, Beadblast Finish
Technical Resources
Specifications
  • Tube OD: 6"
  • Elbow Type: Radius 90 Degree
  • Material: 304 Stainless
  • Port Length: 9.00"
  • Wall Thickness: 0.109"
  • Finish: Bead Blast
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 8.2 lbs
90-Degree-Radius-Elbow-without-Tangent-Dia
Imperial Units
Dim A: 9.00"
Dim B: 9.00"
Dim C: 0.109"
