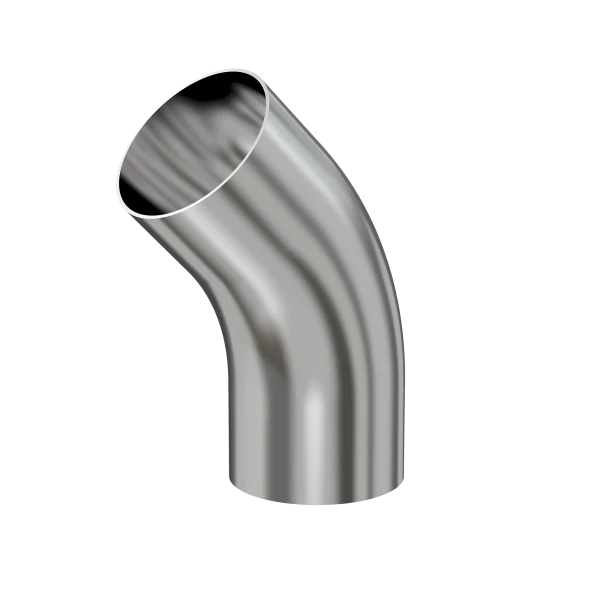

Weld 45 Radius Elbow w/ Tangents

Part Number: G-2KL-100HW
Price: $29.00
Quantity:


Features
  • Contact us at 800-824-4166 to find out about Nor-Cal's custom weldment offerings
  • Fittings with extended tangents ideal for orbital welders
  • Use wled fittings and tubing to create unique pump line geometries
1" OD 45 Degree Wide Radius Elbow w/Tangents, Tumble Finish
Technical Resources
Specifications
  • Tube OD: 1"
  • Elbow Type: Tangent 45 Degree
  • Material: 304 Stainless
  • Port Length: 1.19"
  • Wall Thickness: 0.065"
  • Finish: Tumble
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 0.128 lbs
45-Degree-Radius-Elbow-with-Tangent-Dia
Imperial Units
Dim A: 1.19"
Dim B: 1.50"
Dim C: 0.065"
