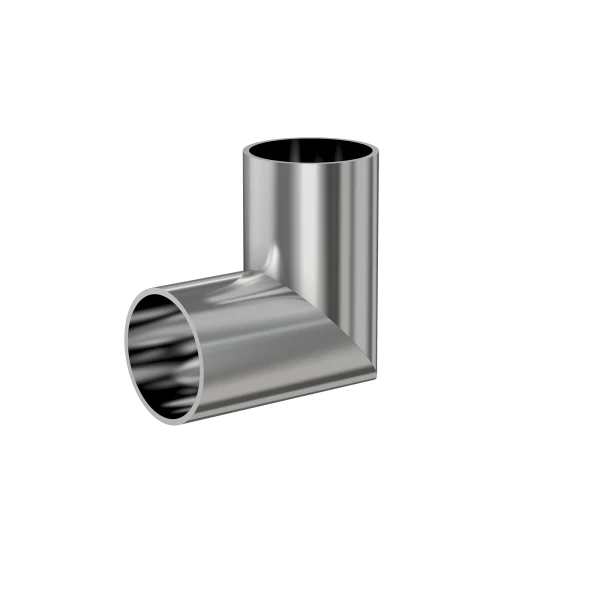

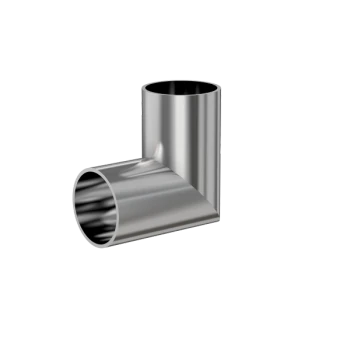

Weld 90 Mitered Elbow

Part Number: E-600MV-B
Price: $469.00
Quantity:


Features
  • Contact us at 800-824-4166 to find out about Nor-Cal's custom weldment offerings
  • Fittings with extended tangents ideal for orbital welders
  • Use wled fittings and tubing to create unique pump line geometries
6" OD 90 Degree Mitered Elbow, 6.06" Port Length, Beadblast Finish
Technical Resources
Specifications
  • Tube OD: 6"
  • Elbow Type: Miter 90 Degree
  • Material: 304 Stainless
  • Port Length: 6.06"
  • Wall Thickness: 0.083"
  • Finish: Bead Blast
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 5.4 lbs

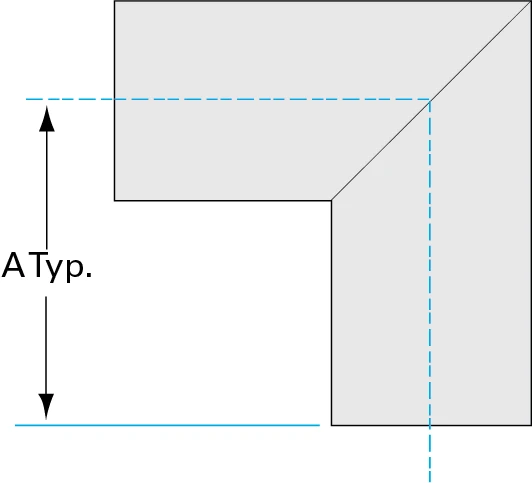

90-Degree-Mitered-Elbow-Dia
Imperial Units
Dim A: 6.06"
Dim C: 0.083"
