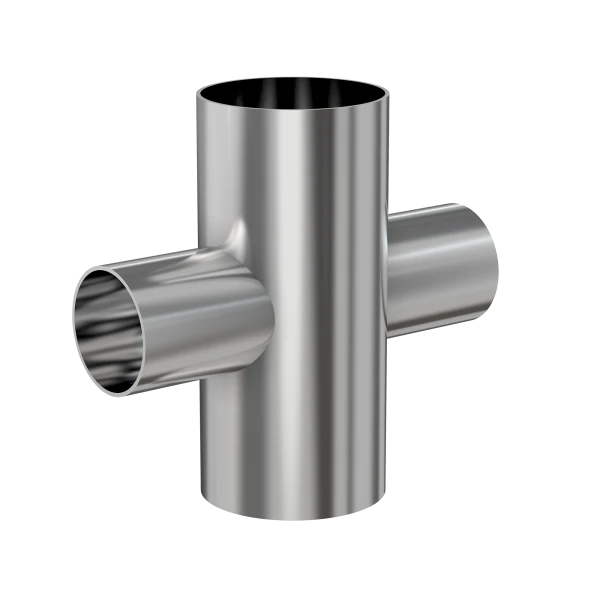

Weld Reducer Cross

Part Number: G-9WR-150-050
Price: $201.00
Quantity:


Features
  • Contact us at 800-824-4166 to find out about Nor-Cal's custom weldment offerings
  • Fittings with extended tangents ideal for orbital welders
  • Use wled fittings and tubing to create unique pump line geometries
1.5" OD to 0.5" OD Reducer Cross, Tumble Finish
Technical Resources
Specifications
  • Tube OD: 1-1/2"
  • Cross Type: Reducer
  • Tube OD 2: 1/2"
  • Material: 304 Stainless
  • Port Length: 2.25"
  • Wall Thickness: 0.065"
  • Finish: Tumble
  • Vacuum Range: 1 · 10-13 mbar to 1 bar
  • Temperature Range: -200 °C to 450 °C
  • Weight: 0.4 lbs
Reducer-Crosses-Dia
Imperial Units
Dim A: 2.25"
Dim B: 1.25"
Dim C: 0.065"
