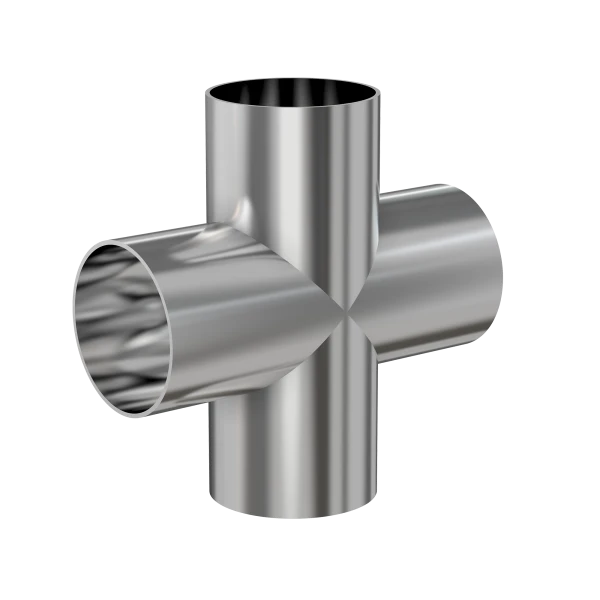

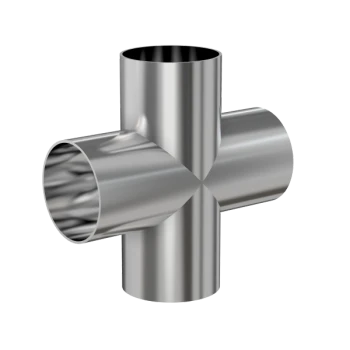

Weld 4-Way Cross
Part Number: G-9W-075
- Contact us at 800-824-4166 to find out about Nor-Cal's custom weldment offerings
- Fittings with extended tangents ideal for orbital welders
- Use wled fittings and tubing to create unique pump line geometries
0.75" OD 4-Way Cross, Tumble Finish
- Tube OD: 3/4"
- Cross Type: 4-Way
- Material: 304 Stainless
- Port Length: 1.00"
- Wall Thickness: 0.035"
- Finish: Tumble
- Vacuum Range: 1 · 10-13 mbar to 1 bar
- Temperature Range: -200 °C to 450 °C
- Weight: 0.065 lbs
