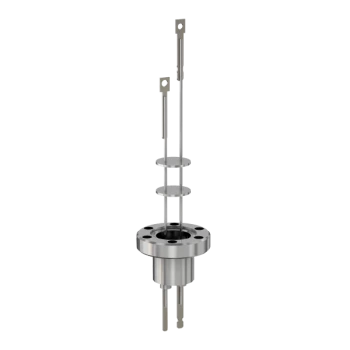

Thermocouple Feedthrough TC-150-1

Part Number: TC-150-1
Quantity:

2.75" OD CF Thermocouple Feedthrough (Type K)
Technical Resources
Specifications
  • Feedthrough Type: Thermocouple
  • Flange Size / Type: DN 40 CF (2.75" OD)
  • Thermocouple: Type K (yellow plug)
  • # Feedthroughs: One
  • Flange Material: 304 Stainless
  • Vacuum Range: 1 · 10-10 mbar to 1 bar (UHV)
  • Temperature Range: |-270 °C to 450 °C
  • Weight: .5 lbs
Thermocouple-Feedthroughs-Dia
Imperial Units
Dim A: .95"
Dim B: .45"
Dim C: .45"
